Stock #  403

Automatic Commercial Stacked Mill CSU1000

Videos
Call for Price
Overview

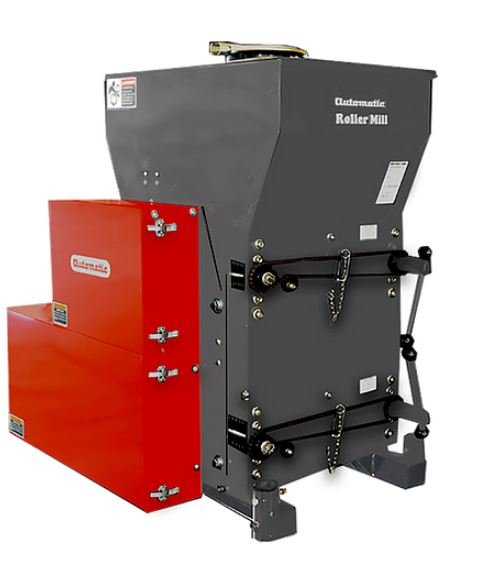

Automatic Commercial Stacked Mill CSU1000
Our CSU corn and grain roller mills are designed to give you extra control in producing the perfect feed for your livestock. Roll configurations are customizable to ensure precise particle sizes every time. Not only do our CSU roller mills produce more uniform particles, they operate on 30% less horsepower than hammer mills - making them a more efficient choice in livestock roller mills.
Specifications
Model
Commercial Stacked Mill CSU1000
Year
2021
Sale Type
New
Manufacturer
Automatic
features

Features

  • Two-stage reduction process for maximum control
  • Top rolls are coarse for primary reduction
  • Bottom rolls are fine to produce the exact amount of reduction required for the job
  • One point adjustment sets the gap between the rolls to control particle size.
Automatic Commercial Stacked Mill CSU1000
specifications csu1000

Specification

Roll Size: 9"D x 18" L (23 x 46)

Shaft Size: 2.00" (5.1)

Drive Belts (motor & rolls): 4

Weight (less motor): 1560 lb (708)

Length: 61" (155)

Height: 65" (165)

Dimensions

Download

Automatic Commercial Stacked Mill CSU1000
literature
Name Link
CSU1000 Information Sheet Download
CSU1000 Instruction Manual Download
CSU1000 Automatic Brochure Download
