Overview

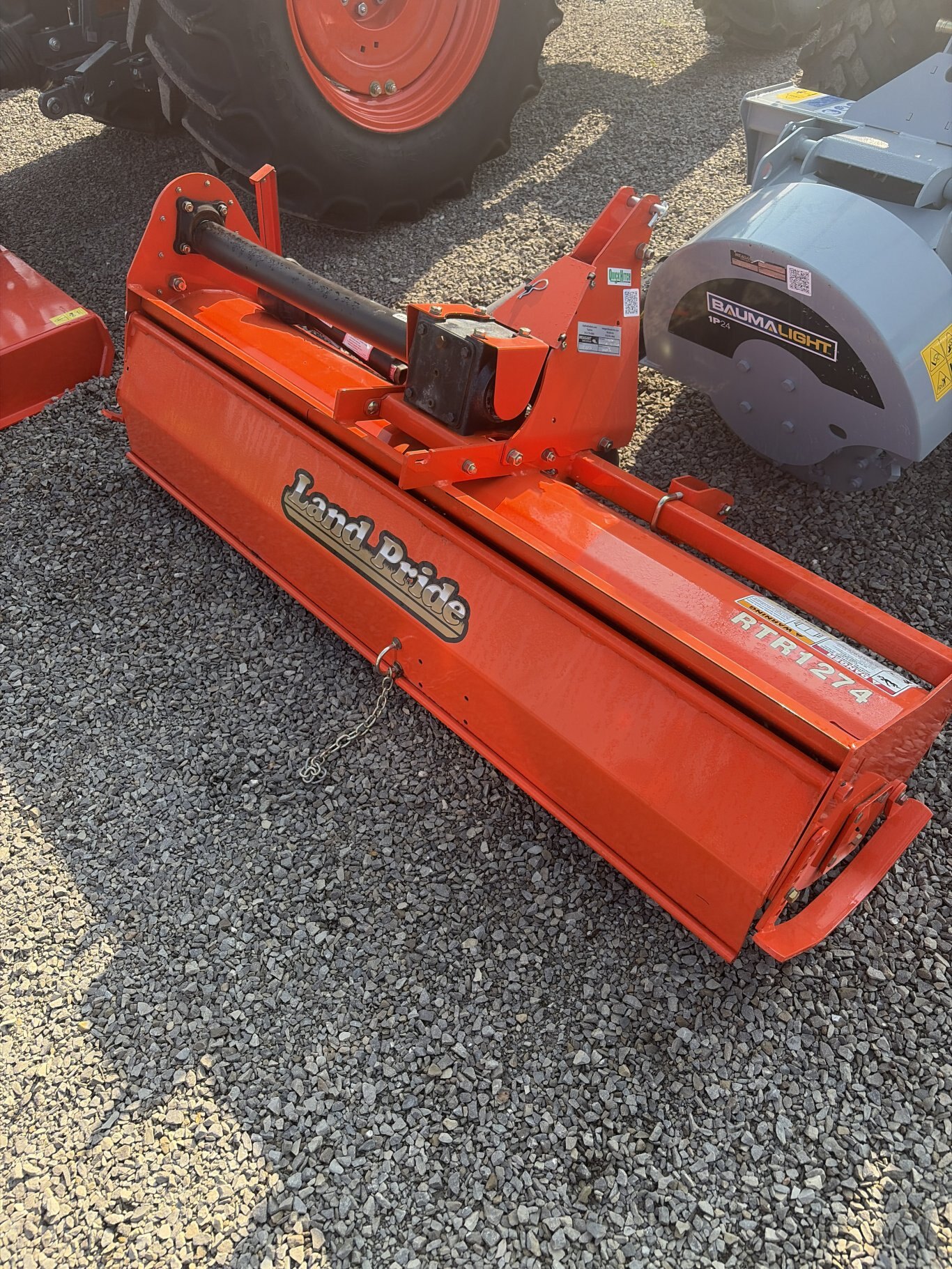

The RTR1274 Rotary Tiller is a heavy-duty reverse rotation tiller designed to provide excellent soil preparation performance for agricultural operations, landscaping professionals, market gardens, and rural property owners. With a 74-inch working width, the RTR1274 delivers efficient field coverage while creating a smooth, consistent seedbed for planting, gardening, and turf establishment.

Designed for tractors in the 25-60 horsepower range, the RTR1274’s reverse rotation design allows the tiller to pull itself into the soil, improving ground penetration and helping break through tough or compacted soil conditions. This makes it an ideal implement for preparing gardens, renovating lawns, incorporating crop residue, maintaining food plots, and completing professional landscaping projects.

The RTR1274 is built for durability with heavy-duty alloy steel "C" shaped tines, a cast iron gearbox, enclosed oil-bath chain drive, and a slip-clutch protected PTO driveline. These features help ensure dependable operation and long service life, even in demanding soil conditions.

Adjustable skid shoes and a controlled rear tailgate allow operators to fine-tune tilling depth and soil finish, providing excellent results across a wide range of applications. With its rugged construction and versatile design, the RTR1274 Rotary Tiller is an excellent choice for operators looking for reliable performance and professional-quality soil preparation.

Key Features

• 74" working width for efficient soil coverage
• Reverse rotation design for improved soil penetration
• Designed for tractors from 25-60 HP
• Category I three-point hitch compatible
• Heavy-duty cast iron gearbox rated up to 60 HP
• Heat-treated alloy steel "C" shaped tines for durability
• Nine rotor flanges with four tines per flange
• 36 total cutting tines
• 6-1/2" maximum tilling depth
• 15" rotor swing diameter for aggressive soil engagement
• 211 RPM rotor speed at 540 PTO RPM
• Fully enclosed #80 oil-bath roller chain drive
• Slip-clutch protected PTO driveline
• Adjustable skid shoes for precise depth control
• Adjustable rear tailgate for improved soil finishing
• Up to 7" offset capability
• Compatible with quick hitch systems

Factory Specifications

Manufacturer: Land Pride
Model: RTR1274
Equipment Type: Reverse Rotation Rotary Tiller

Working Specifications

Working Width: 74" (1.88 m)
Overall Width: Approximately 79-1/4" (2.01 m)
Recommended Tractor PTO Horsepower: 25-60 HP
Maximum Tilling Depth: 6-1/2"
Rotor Rotation: Reverse Rotation
Rotor Swing Diameter: 15"
Rotor Speed: 211 RPM at 540 PTO RPM

Tilling Components

Number of Rotor Flanges: 9
Tines Per Flange: 4
Total Tines: 36
Tine Design: Heat-treated alloy steel "C" shaped blades
Blade Spacing: 7-7/8"

Hitch & Driveline

Hitch Type: Category I Three-Point Hitch
PTO Speed: 540 RPM
Driveline Protection: Slip Clutch
Gearbox: Heavy-duty cast iron housing with bevel gears and tapered roller bearings
Gearbox Rating: Up to 60 HP

Dimensions & Weight

Approximate Weight: 521 lb (236 kg)
Offset Capability: Up to 7"
Rear Tailgate: Adjustable
Skid Shoes: Adjustable

Maintenance & Durability

Drive System: #80 Roller Chain enclosed in oil bath
Gearbox Lubrication: SAE 80-90W EP Oil
Heavy-Duty Components: Designed for long service life and demanding applications

Why Choose the RTR1274 Rotary Tiller?

The RTR1274 Rotary Tiller is built for operators who need dependable soil preparation performance with the versatility to handle a wide range of applications. Its reverse rotation design provides excellent digging capability, allowing operators to break ground effectively while producing a smooth, finished soil surface.

From farm fields and vegetable gardens to landscaping projects and property maintenance, the RTR1274 provides the durability and performance needed to complete demanding tillage jobs efficiently. Its heavy-duty construction, adjustable features, and reliable drivetrain make it a valuable addition to compact and utility tractors.
