Kubota MX5400 Open-Station Overview

The Kubota MX5400 Open Station is a versatile utility tractor designed for acreage maintenance, loader work, livestock chores, hay operations, rotary cutting, snow removal and general agricultural applications.

Available through Weagant Farm Supplies in Brockville, Ontario, the MX5400 combines 55.5 gross engine horsepower with a straightforward open-operator platform, strong three-point hitch capacity and compatibility with a wide range of front and rear attachments.

The MX5400 provides more size, weight and lifting capability than many compact tractors while remaining maneuverable around barns, yards, laneways, landscaping and confined work areas. Its combination of utility-tractor capability and simple operation makes it suitable for farms, rural properties, contractors and commercial grounds-maintenance operations.

Depending on configuration, the MX5400 Open Station may be available with gear-drive or hydrostatic transmission and either two-wheel drive or four-wheel drive.

Available Configurations

MX5400 Gear-Drive Open Station

The gear-drive MX5400 uses an eight-forward and eight-reverse transmission with a synchronized shuttle.

This configuration provides clearly defined working speeds for fieldwork, rotary cutting, transport and other applications where the operator wants direct control over the selected gear.

Transmission: Gear drive
Forward and Reverse Speeds: 8 forward and 8 reverse
Shuttle: Synchronized
Clutch: Dry single plate
PTO Horsepower: 46.5 HP

MX5400 HST Open Station

The hydrostatic MX5400 provides smooth speed and directional control without requiring the operator to select a conventional gear for every change in travel speed.

The HST configuration is particularly well suited to loader work, snow removal, landscaping and other jobs involving frequent speed and directional changes.

Transmission: Hydrostatic
Speed Ranges: Three
Directional Control: Hydrostatic pedal operation
Drive: Four-wheel drive
PTO Horsepower: 46.5 HP

The transmission and drive configuration of the advertised tractor should be clearly identified before publication.

Quick Specifications

Model: Kubota MX5400
Operator Platform: Open Station
Engine Model: Kubota V2403CR-T
Engine Type: Four-cylinder, turbocharged, direct-injection diesel
Cooling System: Liquid cooled
Fuel System: Common Rail System
Gross Engine Horsepower: 55.5 HP
Net Engine Horsepower: 53 HP
PTO Horsepower: 46.5 HP
Engine Displacement: 2.4 L / 2,434 cc
Rated Engine Speed: 2,700 rpm
Fuel Capacity: 51 L / 13.5 US gal
Alternator: 45 A
Transmission: Gear drive or hydrostatic, depending on configuration
Drive: Two-wheel drive or four-wheel drive, depending on configuration
Rear Differential Lock: Standard mechanical
Brake Type: Mechanical wet disc
Rear PTO: Live independent hydraulic PTO with PTO brake and wet clutch
PTO Speed: 540 rpm
Three-Point Hitch: Category I and II
Rear Lift Capacity: 1,050 kg / 2,310 lb at 24 inches behind the lift point
Hydraulic Pump Capacity: 35.8 L/min / 9.5 US gpm
Power-Steering Pump Capacity: 18.6 L/min / 4.9 US gpm
Rear Remote Valves: Up to three optional valves
Steering: Hydrostatic power steering
Ground Clearance: 385 mm / 15.2 in
Wheelbase: 1,895 mm / 74.6 in
Overall Height with ROPS: Approximately 2,430 mm / 95.7 in
Minimum Overall Width: Approximately 1,770 mm / 69.7 in
Turning Radius: Approximately 2.6–2.7 m / 8.5–8.9 ft, depending on configuration

Specifications may vary according to transmission, drive system, tires and installed equipment.

Key Features

Kubota 55.5 HP Diesel Engine

The MX5400 is powered by Kubota’s V2403CR-T four-cylinder diesel engine.

The 2.4-litre engine uses turbocharging, direct injection and Kubota’s Common Rail System to provide efficient and dependable power for loader work, rotary cutting, property maintenance, hay operations and general farm use.

With 55.5 gross engine horsepower and 46.5 PTO horsepower, the MX5400 can operate a wide selection of compatible PTO-driven and ground-engaging implements.

Open-Station Operator Platform

The open-station platform provides straightforward access, clear visibility and an unobstructed working environment.

A full-flat deck provides additional foot space, while the high-back suspension seat helps improve operator comfort during longer working periods.

The open platform is particularly well suited to operators who frequently enter and exit the tractor during livestock chores, property maintenance, attachment changes and general farm work.

Gear-Drive and Hydrostatic Transmission Choices

The MX5400 can be configured with either a traditional gear-drive transmission or a hydrostatic transmission.

The eight-forward and eight-reverse gear-drive transmission provides defined working speeds for fieldwork, transport and PTO applications.

The available three-range hydrostatic transmission provides smooth, variable speed control and convenient directional changes, making it particularly useful for loader work, snow removal and applications requiring frequent maneuvering.

Transmission availability may depend on the tractor’s drive and model configuration.

Two-Wheel Drive and Four-Wheel Drive Options

Depending on configuration, the MX5400 Open Station may be available with two-wheel drive or four-wheel drive.

Two-wheel-drive models provide a straightforward and economical option for work performed primarily on firm, level surfaces.

Four-wheel-drive models provide additional traction for loader work, snow removal, muddy conditions, uneven terrain and applications where greater front-axle pulling capability is required.

The advertised tractor’s drive system should be clearly identified in the unit description.

Category I and II Three-Point Hitch

The rear three-point hitch is compatible with Category I and Category II implements, providing flexibility for a wide selection of agricultural and property-maintenance equipment.

The hitch provides a rated lift capacity of 2,310 pounds measured 24 inches behind the lift point.

Compatible rear implements may include rotary cutters, box scrapers, rear blades, landscape rakes, tillers, seeders, post-hole diggers and other three-point equipment.

Actual implement compatibility must be confirmed according to weight, dimensions, PTO requirements and tractor configuration.

Live-Independent Rear PTO

The MX5400 uses a live-independent hydraulic rear PTO with a wet clutch and PTO brake.

The PTO operates independently of tractor movement, allowing compatible rotary cutters, tillers, spreaders, hay equipment and other PTO-driven implements to be engaged when required.

The standard rear PTO operates at 540 rpm.

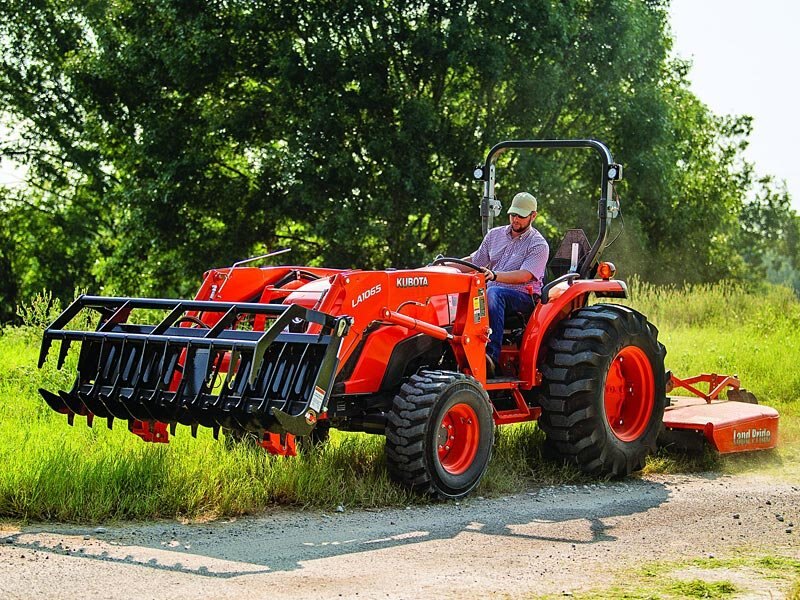

Performance-Matched LA1065 Front Loader

The MX5400 is compatible with Kubota’s LA1065 front loader.

The loader is designed to provide the lift height, breakout force and capacity needed for material handling, property maintenance and agricultural work.

A two-lever quick coupler allows compatible front attachments to be changed efficiently.

Depending on the selected configuration, front attachments may include:

• General-purpose bucket
• Bale spear
• Pallet forks
• Grapple
• Snow pusher
• Front blade
• Other compatible loader attachments

Loader capacity, attachment system and included equipment must be confirmed for each advertised tractor.

Hydrostatic Power Steering

Hydrostatic power steering provides smooth and responsive steering control.

This helps reduce operator effort during loader work, property maintenance and applications requiring frequent maneuvering.

Power steering remains especially valuable when the tractor is equipped with a front loader or additional front-mounted weight.

Wet-Disc Brakes

The MX5400 uses mechanical wet-disc brakes designed for reliable operation and long service life.

Wet-disc components are enclosed and protected from dirt, moisture and other conditions commonly encountered during agricultural and property-maintenance work.

Rear Differential Lock

A mechanical rear differential lock is standard.

The differential lock allows both rear wheels to turn together when additional traction is required in mud, snow, soft ground or uneven conditions.

Accessible Maintenance Points

The full-opening hood provides convenient access to the engine compartment and routine service areas.

The radiator screen can be removed from either side of the tractor, while the air filter, battery and coolant-recovery tank are positioned for easier inspection and maintenance.

This accessible layout helps reduce the time required for regular service checks.

Compact Size with Utility-Tractor Capability

The MX5400 is positioned between traditional compact tractors and larger agricultural utility tractors.

Its overall size allows it to work around barns, landscaping, yards and confined areas while providing greater horsepower, weight and three-point lift capability than many smaller compact models.

This balance makes it a practical choice for customers who have outgrown a smaller compact tractor but do not require a larger farm tractor.

Available Tires, Equipment and Options

Depending on configuration, the Kubota MX5400 Open Station may be available with:

• Gear-drive transmission
• Hydrostatic transmission
• Two-wheel drive
• Four-wheel drive
• Kubota LA1065 front loader
• Two-lever loader quick coupler
• General-purpose bucket
• Bale spear
• Pallet forks
• Grapple
• Third-function hydraulic valve
• Up to three rear remote valves
• Draft control
• Agricultural tires
• Industrial tires
• R14 hybrid tires
• Rear wheel weights
• Liquid tire ballast
• Front weights
• Foldable ROPS
• Open-station canopy
• Additional work lighting
• Block heater
• Drawbar
• Compatible three-point implements

Option availability and compatibility must be confirmed for the selected tractor and transmission configuration.

Why Buy From Weagant Farm Supplies?

• Authorized Kubota dealer in Brockville, Ontario
• Family-owned Eastern Ontario equipment dealership
• Serving Eastern Ontario customers since 1953
• Local equipment sales, parts and service support
• Support selecting the appropriate transmission, tires, loader and attachments
• Equipment assembled, inspected and prepared before delivery
• Financing, leasing and delivery options available where applicable
• Access to genuine Kubota parts and maintenance items
• Support for agricultural, residential and commercial equipment applications

Available From Weagant Farm Supplies in Brockville

The Kubota MX5400 Open Station is available through Weagant Farm Supplies, located at 5077 County Road 29 in Brockville, Ontario.

Weagant Farm Supplies supports farmers, contractors, livestock operations and rural property owners in Brockville, Leeds and Grenville and surrounding Eastern Ontario communities.

Call Weagant Farm Supplies at 613-342-0668 for current availability, configuration details, package pricing, attachments, financing options or to request a quote.

Contact Weagant Farm Supplies to compare gear-drive and hydrostatic configurations and build a Kubota MX5400 Open-Station package suited to your property, operation and workload.

Important Pricing Information

Price shown is for the following model and configuration:

MX5400HSTRC  57.0HP DSL HST-3 4WD OPEN STATION TRACTOR and STANDARD AGRICULTURAL TIRES
