Kubota RTV-X Overview

The Kubota RTV-X is a full-size diesel utility vehicle designed for farms, livestock operations, construction sites, commercial properties, municipalities, rural acreages and demanding year-round work. Available through Weagant Farm Supplies in Brockville and Topline Trailer & Equipment in Winchester, the RTV-X combines a dependable Kubota diesel engine with four-wheel drive, hydraulic power steering, a steel cargo box and Kubota’s VHT-X variable hydrostatic transmission.

Built for hauling, towing and working across challenging terrain, the RTV-X offers two-person seating, independent suspension and strong low-speed control. Its durable construction and available attachments make it a practical work vehicle for transporting tools, feed, firewood, fencing supplies, equipment and materials throughout Eastern Ontario.

Available RTV-X Trims

Kubota RTV-X Basic

The RTV-X Basic provides the core durability and work capability of the RTV-X platform in a straightforward configuration.

Body Colour: Orange
Wheels: Steel
Cargo Box: Traditional steel cargo box

The Basic configuration may suit customers seeking a dependable diesel work vehicle without every comfort or appearance upgrade.

Kubota RTV-X Standard

The RTV-X Standard adds additional operator-comfort and convenience features while retaining the traditional steel cargo box.

Body Colours: Orange or camouflage
Cargo Box: Traditional steel cargo box
Hydraulic Bed Lift: Standard
Bed Liner: Available on orange; standard on camouflage
Headlights: LED high and low beam
Tilt Steering: Standard
Driver-Adjustable Seat: Standard

Kubota RTV-X Premium

The RTV-X Premium provides the highest equipment level within the traditional two-seat RTV-X lineup.

Body Colours: Orange, camouflage or Desert Sand
Cargo Box: Traditional steel cargo box
Hydraulic Bed Lift: Standard
Spray-On Bed Liner: Standard
Headlights: LED high and low beam
Front Guard: Premium
Wheel Options: Steel or available alloy wheels

Trim specifications and included equipment should be confirmed against the individual unit before publication. Kubota’s current brochure distinguishes the Basic, Standard and Premium trims by colour availability, lighting, cargo-bed equipment, wheels and front-guard configuration.

Quick Specifications

Engine: Kubota D1105-E4-UV
Engine Type: Three-cylinder, four-cycle diesel
Cooling System: Liquid cooled
Engine Displacement: 1,123 cc / 68.5 cu. in.
Gross Engine Horsepower: 23.3 HP
Maximum Torque: 51.4 lb-ft
Transmission: Variable Hydrostatic Transmission, VHT-X
Transmission Ranges: High and low forward, neutral and reverse
Maximum Travel Speed: 40 km/h / 25 mph
Drive System: Selectable four-wheel drive
Front Differential: Limited slip
Rear Differential: Foot-operated differential lock
Steering: Hydrostatic power steering
Front Suspension: Independent dual A-arm
Rear Suspension: Independent
Front Suspension Travel: 205 mm / 8 in.
Rear Suspension Travel: 205 mm / 8 in.
Brakes: Front and rear wet-disc brakes
Cargo-Box Material: Steel
Cargo-Box Volume: 15.2 cu. ft.
Cargo-Box Capacity: 1,102 lb / 500 kg
Maximum Vehicle Payload: Up to 1,499 lb / 680 kg, depending on trim
Maximum Towing Capacity: 1,300 lb / 590 kg
Fuel Capacity: 30 L / 7.9 US gal
Ground Clearance: Approximately 10.3–10.4 in.
Vehicle Width: 63.2 in. / 1,605 mm
Vehicle Length: Approximately 120.1–123 in., depending on trim
Wheelbase: 80.5 in. / 2,045 mm
Turning Radius: Approximately 13.1 ft. / 4 m

Key Features

Kubota Three-Cylinder Diesel Engine

Every RTV-X is powered by Kubota’s D1105 three-cylinder diesel engine. The 1.1-litre engine produces 23.3 gross horsepower and 51.4 lb-ft of torque for hauling, towing and travelling across demanding terrain.

The diesel powertrain is designed around low-speed utility work rather than recreational speed, making the RTV-X especially well suited to farms, commercial properties and job sites where durability and controlled performance matter.

VHT-X Variable Hydrostatic Transmission

Kubota’s two-range VHT-X transmission provides smooth acceleration and one-pedal speed control.

Releasing the accelerator allows the transmission to provide dynamic braking, helping slow the RTV-X during descents and frequent stop-and-go operation. This provides greater control while hauling cargo or travelling across uneven ground.

Selectable Four-Wheel Drive

The RTV-X uses a selectable four-wheel-drive system that can be engaged when additional traction is required and disengaged when two-wheel drive is sufficient.

A limited-slip front differential and locking rear differential help reduce wheelspin in snow, mud, loose soil and uneven terrain.

Heavy-Duty Steel Cargo Box

The RTV-X includes a steel cargo box designed to carry tools, feed, firewood, fencing supplies and other work materials.

The traditional cargo box provides approximately 15.2 cubic feet of volume and a maximum cargo capacity of 1,102 pounds. Four integrated tie-down points help secure loads during transport.

Hydraulic Cargo-Box Lift

On equipped configurations, the hydraulic cargo-box lift allows the operator to raise and lower the bed using a lever.

This reduces the physical effort required to unload soil, mulch, firewood, feed and other loose material. Hydraulic bed-lift equipment varies by trim and should be confirmed for the advertised vehicle.

1,300-Pound Towing Capacity

Front and rear two-inch hitch receivers provide flexibility for towing trailers and positioning equipment.

The RTV-X has a rated rear towing capacity of up to 1,300 pounds. Trailer weight, tongue weight, terrain and operating requirements must remain within the limits stated in the operator’s manual.

Independent Suspension

Independent suspension at all four wheels helps the RTV-X maintain traction and ride comfort across ruts, fields, trails and uneven working areas.

Kubota provides approximately eight inches of front and rear suspension travel, helping the machine remain stable when carrying cargo over rough terrain.

Hydrostatic Power Steering

Hydrostatic power steering provides responsive control while reducing steering effort.

This is especially useful when travelling at low speed, carrying a heavy load or operating with front-mounted attachments.

Wet-Disc Brakes

The RTV-X uses sealed front and rear wet-disc brakes.

The enclosed design helps protect the braking components from mud, dust, moisture and debris, supporting reliable performance in demanding agricultural and commercial environments.

High-Rigidity Steel Frame

A strong steel frame forms the foundation of the RTV-X.

The frame is designed to withstand repeated hauling, towing and operation across rough terrain while helping isolate occupants from noise and vibration. Skid plates and CV-joint guards help protect critical drivetrain components beneath the vehicle.

LED Headlights

The redesigned RTV-X uses LED headlights to improve visibility during early mornings, evening work and poor weather.

Headlight configuration varies by trim. Basic models use LED low beams, while Standard and Premium configurations include LED high and low beams.

Heavy-Duty Multipurpose Tires

Available heavy-duty multipurpose tires are designed to provide traction on loose soil and mud while remaining suitable for harder surfaces and turf.

Tire and wheel availability varies according to trim, colour and vehicle configuration.

Available Accessories and Attachments

Depending on configuration, the Kubota RTV-X may be equipped with:

• Roof
• Windshield
• Rear panel
• Soft or hard doors
• Work lights
• Light bar
• Front winch
• Front brush guard
• Alloy wheels
• ATV tires
• Heavy-duty multipurpose tires
• Cargo-box bed liner
• Cargo racks and storage
• Sprayer
• Spreader
• Sweeper
• Straight snow blade
• V-plow

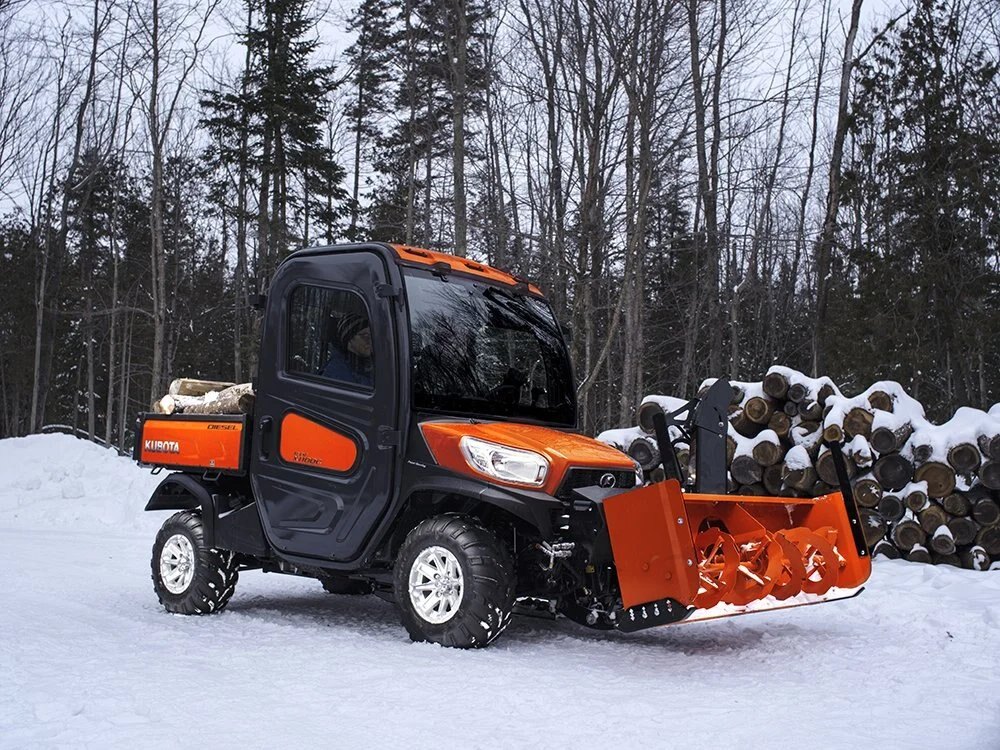

• Snowblower
• K-Connect front attachment system
• Four-point front hitch
• PTO-driven front attachments
• Heated accessories
• Mirrors
• Turn signals
• Additional electrical accessories

Kubota currently offers K-Connect-compatible snowblowers, sweepers, straight blades and V-plows, along with utility accessories for comfort and productivity. Attachment compatibility must be confirmed for the specific RTV-X configuration.

Ideal Applications

The Kubota RTV-X is well suited to:

• Farms and livestock operations
• Dairy and beef farms
• Horse farms and equestrian facilities
• Transporting feed and bedding
• Moving fencing supplies
• Hauling tools and equipment
• Property and acreage maintenance
• Construction sites
• Landscaping operations
• Municipal and institutional properties
• Campgrounds and recreational properties
• Hunting and land management
• Grounds maintenance
• Firewood and material hauling
• Trailer positioning
• Snow removal
• Spraying and spreading
• Year-round commercial work

The appropriate trim, tires and accessories will depend on the terrain, operating environment and work being completed.

Why Buy From Weagant Farm Supplies?

• Authorized Kubota dealer in Brockville, Ontario
• Family-owned Eastern Ontario equipment dealership
• Serving Eastern Ontario customers since 1953
• Local utility-vehicle sales, parts and service support
• Assistance selecting the appropriate trim, tires and attachments
• Equipment assembled, inspected and prepared before delivery
• Financing, leasing and delivery options available where applicable
• Access to genuine Kubota parts and maintenance products
• Support for agricultural, residential and commercial customers

• Available From Weagant Farm Supplies and Topline Trailer & Equipment

  The Kubota RTV-X is available through both Eastern Ontario dealership locations:

  Weagant Farm Supplies
  5077 County Road 29
  Brockville, Ontario
  613-342-0668

  Topline Trailer & Equipment
  1226 County Road 31
  Winchester, Ontario
  613-774-0992

  Weagant Farm Supplies and Topline Trailer & Equipment support farmers, contractors, municipalities, commercial operators and rural property owners throughout Brockville, Winchester, Leeds and Grenville, SD&G, rural Ottawa and surrounding Eastern Ontario communities.

  Contact Weagant Farm Supplies in Brockville or Topline Trailer & Equipment in Winchester to compare RTV-X Basic, Standard and Premium trims and configure a diesel utility vehicle suited to your property, operation and workload.

Important Pricing Information

Price shown is for the following model and configuration:

RTV-X OPEN ROPS,DSL 23.3HP,VHT-X,4WD
