ID # 39123055

Halverson HWP-160 Firewood Processor

Videos
Call for Price
Overview

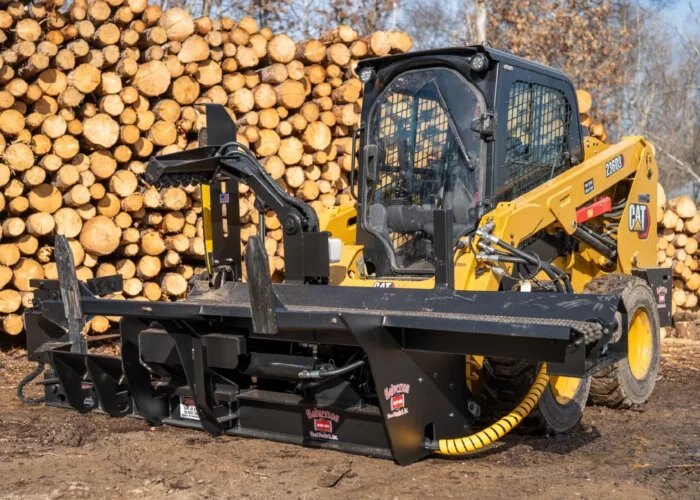

HWP-160 Firewood Processor

Cut and split cords of wood from the comfort of your cab.

Made To Dominate the Woods

The HWP-160 is our most powerful processor model designed for maximum production in commercial operations. With automated feeding, superior splitting force, and multi-way wedge options, this American-made powerhouse tackles the toughest timber without breaking a sweat.
Specifications
Model
HWP-160
Category Name
Forestry & Fencing
Year
2025
Sale Type
New
Manufacturer
Halverson
details

Key Features

  • Automated Log Feeding System: No more manual feeding hassles. Tough feeder chains on the deck automatically move logs into the grab arm so you can process more wood with less effort.

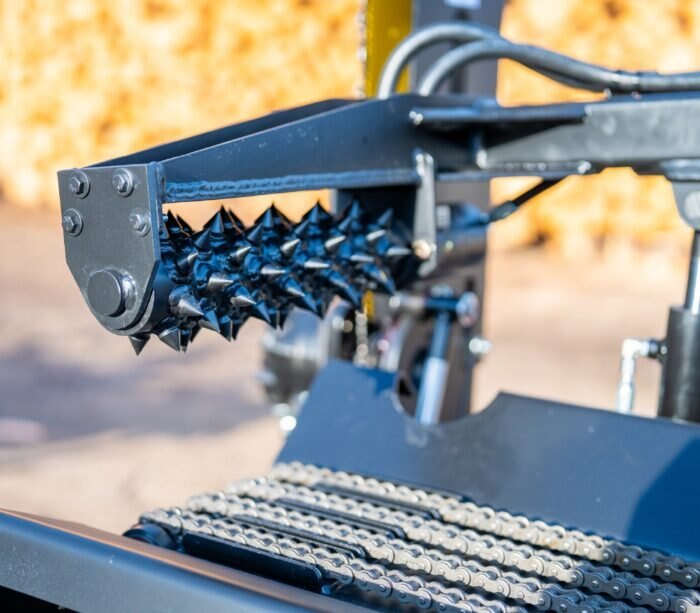

  • Advanced Grab Arm Technology: Our rugged grab arm with integrated roller and spikes grips even the most irregular logs, feeding them precisely where they need to go.
  • Cut Smarter with Precision Measuring: Built-in measuring device lets you set your length once and forget it, delivering consistent cuts without the guesswork.
  • 4, 6, or 8-Way Splitting Power: Choose your hydraulic wedge configuration based on your production needs. More ways means more finished pieces in less time.
  • Single-Operator Efficiency: One machine, one operator, three jobs done. Load, cut, and split without leaving your cab.
  • Serious Cutting Muscle: The beefed-up 32″ (82cm) Speedmax XL blade powers through larger logs faster than our previous models.
  • Take It to the Timber: Why haul logs when you can bring the processor to them? Process firewood right where the trees fall.
  • Direct-to-Truck Loading: Skip the extra handling. Process firewood directly into your truck or trailer and save valuable time.
  • Quick Attach/Detach: Hook up or disconnect in minutes. No complicated setup means more time making firewood.

Will It Work with Your Machine?

The HWP-160 is built tough at 2,347 lbs (1,065 kg) and needs equipment to match. It connects to larger skid steers, excavators, and loaders with universal attachment plates engineered to work with most major brands.

Your machine needs:

  • Case Drain connection
  • 15.5-20 GPM hydraulic flow
  • Minimum 2850 PSI hydraulic pressure
  • Ability to safely handle 2,347 lbs
specs
Length 144″ (366cm)
Width 68″ (173 cm)
Height 70″ (178 cm)
Weight 2, 347 lbs (1,065 kg)
Minimum Pressure 2850 PSI (196 bar)
Flow 15-20 gpm (57 – 76 l/min)
Connections 1-Pressure, 1-Return
1-Case Drain
Max Log Diameter 22″ (56 cm)
Max Log Length 12′ (3.66 m)
Min Log Length 6′ (1.82 m)
Firewood Cut Length Up to 22″ (56 cm) (In 2″ increments)
Saw Bar 32″ (82cm) Speedmax XL
Saw Chain 97 DL .404 pitch/18HX Series
Saw Motor Bent Axis Piston (Industrial)
Saw Oiler Automatic 2 Qt (1.89 l) Tank
Max Saw Cut 22″ (56 cm)
Splitter Cylinder Custom 4.5″ x 22″ Stroke
Splitter Force 43,331 lbs @ 2850 psi
Splitting Wedge 4-way, 6-way or 8-way Hydraulically Adjustable
In-Feed Feed Chain/Roll Arm
Mounting Universal Quick Attach
SAE Spec J2513
Measuring Manual Moveable Device
faq

Frequently Asked Questions

Q: How will I know if the HWP-160 will work with my machine?
A: All of our processors are built to be compatible with many common skid steer brands and other equipment that use the universal attachment plate. Your machine must have these basic compatibility requirements:

  • Case Drain
  • 15.5-20 GPM hydraulic flow rate
  • Minimum 2850 PSI
  • Ability to safely lift and operate 2,347 lbs (1,065 kg)

Q: What’s the difference between the HWP-160 and other models?
A: The HWP-160 is our largest and most advanced processor, featuring automated feeder chains on the deck, a grab arm with roller and spikes for better log control, a build-in measuring device for consistent cuts, and options for 4, 6, 0r 8-way splitting configurations.

Q: How big of a log can I process?
A: The HWP-160 can process logs up to 22” in diameter and 12’ in length.

Q: Is the HWP-160 suitable for commercial operations?
A: Absolutely. The HWP-160 is specifically designed for high-volume commercial firewood production while maintaining the mobility and versatility that all Halverson processors are known or.

Q: How do I set up the HWP-160
A: Setup is straightforward with three hydraulic connections (pressure, case drain, and return) and one electrical connection. Then just secure it using your machine’s quick attach mounting system and you’re ready to start processing.

Q: Where can I purchase one?
A: Get a quote from our sales team or find a dealer near you.

literature
Name Link
Halverson 160 Firewood Processor Flyer Download
options
  • The HWP-160 comes standard with a 4-way wedge, with a 6-way or 8-way wedge is available as an upgrade.
