Stock #  909999

Sitrex SR Series

  • Sitrex SR Series
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

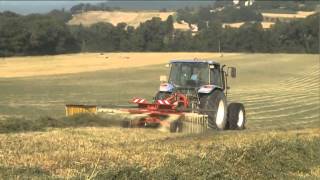

The SITREX 420/11 windrowing machine, was built using the most up-to-date design techniques. From this comes a fast, efficient, strong and extremely versatile machine, which gives excellent results in regard to both quality and in working time.

It is possible to set the height of the tines from the ground, level the machine horizontally according to the operating axis, and put the machine in the transport position, all without having to gel off the tractor.
Hydraulic adjustment of working height, leveling I and positioning for transport:
It is possible to set the height of the tines from the ground, level the machine horizontally according to the operating axis, and put the machine in the transport position, all without having to gel off the tractor.
Uniform raking actions:
An 11 - arm reduction gearbox, completely encased, in oil bath, with specially designed cams, lifts the rake arms in a very smooth, uniform movement and thus the hay is stirred and released gently, avoiding the loss of foliage.
Wide range of raking possibilities:
Allows a wide range of possibilities in setting the working width, up to a maximum width of 13'9", which gives excellent results in terms of working time.
Well-structured windrows:
The technical features of the machine make it possible to create well-structured windrows even on hilly ground or when turning the machine.
Very precise turning over of hay:
The motion is transmitted to the machine with a constant-velocity universal joint, allowing the forming of a windrow of a uniform shape and size, even when making small maneuvers with the tractor.
Harvest optimizations:
The particular action of the reduction gearbox makes it possible to harvest the greatest quantity of hay, because the tines attached to the rotating arms are in contact with the ground for a long.
Sturdy machine construction:
The machine is built with top quality steel and components, guaranteeing reliability and long life.
An additional hydraulic system allows leveling of the machine according to the direction it is moving. This adjustment can also be done from the driver's seat. There is also a crank attached to the hydraulic cylinder for preadjustment or additional adjustment of the leveling system.
The arms holding the tines have a special shape which prevents deformation and guarantees long life. Each arm holds four double tines made from high-quality steel, heat treated for great surface hardness and high impact resistance while working. The tines can be easily removed and replaced.
The tandem design allows for a uniform path even on rough terrain.
Specifications
Model
SR Series
Category Name
Harvesting
Year
2021
Sale Type
New
Manufacturer
Sitrex
sr 320 8 specifications
Number Of Arms 8
Number Of Double Tines Per Arm 3
Working Width 3.20m / 10'-6"
Rotor Diameter 2.70m / 8'-10"
Transport Width 1.60m / 5'
Power Required 19Kw / 25HP
Rpm Max 540
Rotor rpm 75
Weight 466Kg / 1030lbs
Tyre Size 16x6.50-8
sr 350 9 specifications
Number Of Arms 9
Number Of Double Tines Per Arm 3
Working Width 3.50m /11'-6"
Rotor Diameter 2.60m / 9'-6"
Transport Height 2.20m / 7'-3"
Transport Width 1.50m / 5'
Length 3.30m / 10'-10"
Power Required 26Kw / 35HP
Rpm 350-450 R.P.M.
Tyre Size 16x6.50-8
sr 420 11 specifications
Number Of Arms 11
Number Of Double Tines Per Arm 4
Working Width 4.20m / 13'-9"
Transport Width 2.00m / 6'-7"
Rotor Diameter 3.40m / 11'-2"
Power Required 37Kw / 50HP
Rpm 350-450 R.P.M.
Weight 560Kg / 1233lbs
Tyre Size 16x6.50-8
sr 420 11h specifications
Number Of Arms 11
Number Of Double Tines Per Arm 4
Working Width 4.20m / 13'-9"
Rotor Diameter 3.40m / 11'-2"
Transport Width 2.00m / 6'-7"
Rpm 540
Hydraulic Requirement 1.000PSI
Weight 614Kg / 1352lbs
Tyre Size 18x8.50-8
sr 500 13 specifications
Number Of Arms 13
Number Of Double Tines Per Arm 4
Working Width 5.00mt
Transport Width 2.50mt
Rotor Diameter 4.00mt
Power Required 52Kw / 70HP
Hydraulic Pressure 2000PSI
Weight 865Kg
Tyre Size 18x8.50-8
literature
Name Link
SR 320/8 Brochure Download
SR 350/9 , 410/11 Brochure Download
SR 420/11H Brochure Download
SR 500/13 Brochure Download
Sitrex Haymaking Download
