Highline® BP661 Bale Pro® Series
Chain and Slat Processor |
PROCESS that way |
|
The BP 661 Bale Pro® is another excellent choice for cattle operations in need of a tough, well-built bale processor. As an alternative to the BP 660, the 661 model features a slat and chain processing chamber along with an offset flail drum for effective performance. You can enhance the BP 661 by adding a Feed Chopper™ and Grain Tank. Highline® flails are designed to efficiently “bite” into the bale, ensuring even and consistent feed processing. Their optimal size allows them to grip the bale effectively. The flail drum features a stepped shaft design, machined from a single solid piece of material, which greatly enhances its strength and durability. Arranged in a spiral pattern, the flails continuously pull and process the bale, delivering uniform feed output. Additionally, the drum is digitally balanced to ensure smooth operation and extended bearing life. |

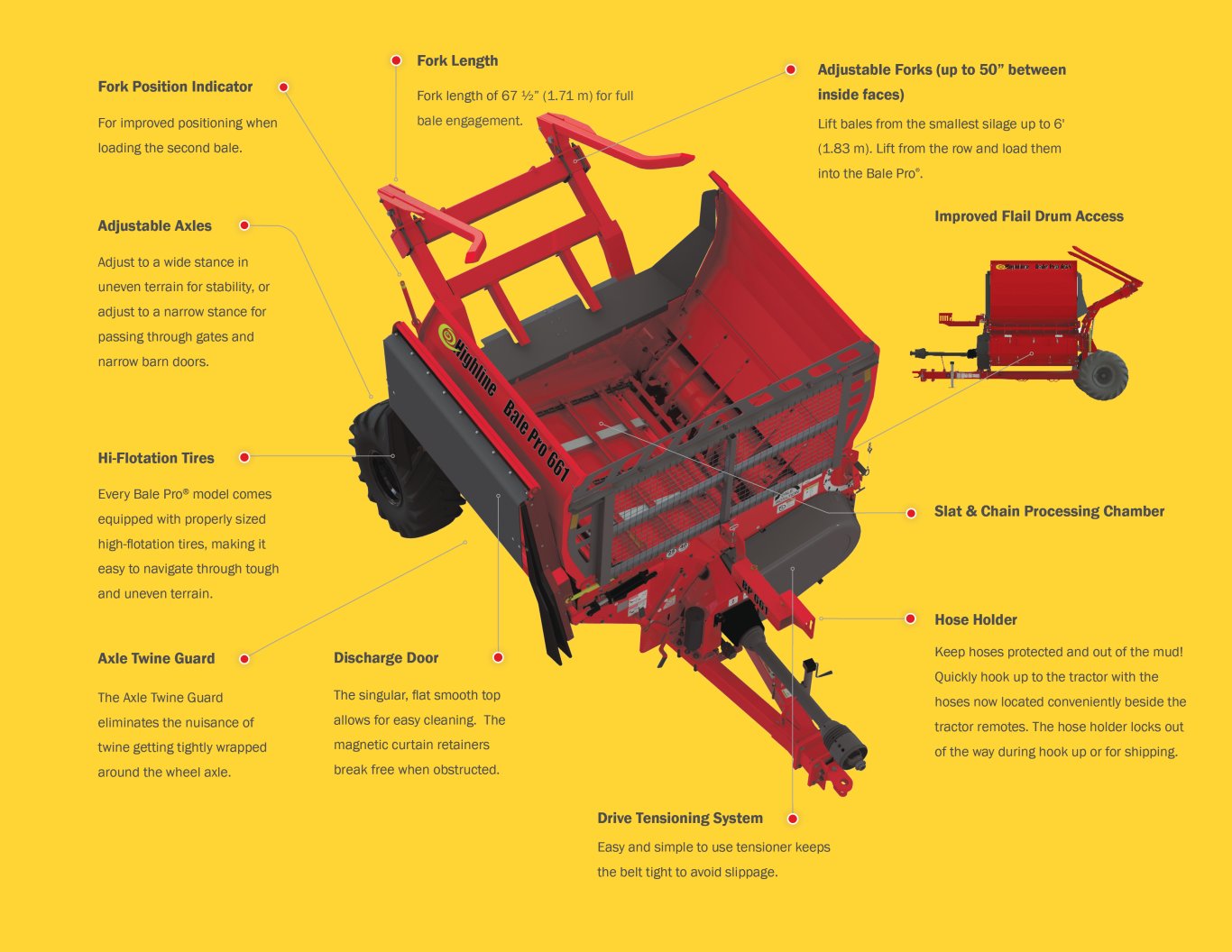

Discharge Door
The singular, flat smooth top allows for easy cleaning. The magnetic curtain retainers break free when obstructed.
Rear Deflectors
Standard on all models.
Screen Design
For better material containment.
Side Shields
Contoured to match large bale profiles for improved flail engagement.
Hose Holder
Keep hoses protected and out of the mud! Quickly hook up to the tractor with the hoses now located conveniently beside the tractor remotes. The hose holder locks out of the way during hook up or for shipping.
Drive Tensioning System
Easy and simple to use tensioning keeps the belt tight to avoid slippage
Fork Length
Fork length of 67 ½” (1.71 m) for full bale engagement.
Adjustable Forks (up to 50” between inside faces)
Lift bales from the smallest silage up to 6' (1.83 m). Lift from the row and load them into the Bale Pro®
Fork Position Indicator
For improved positioning when loading the second bale.

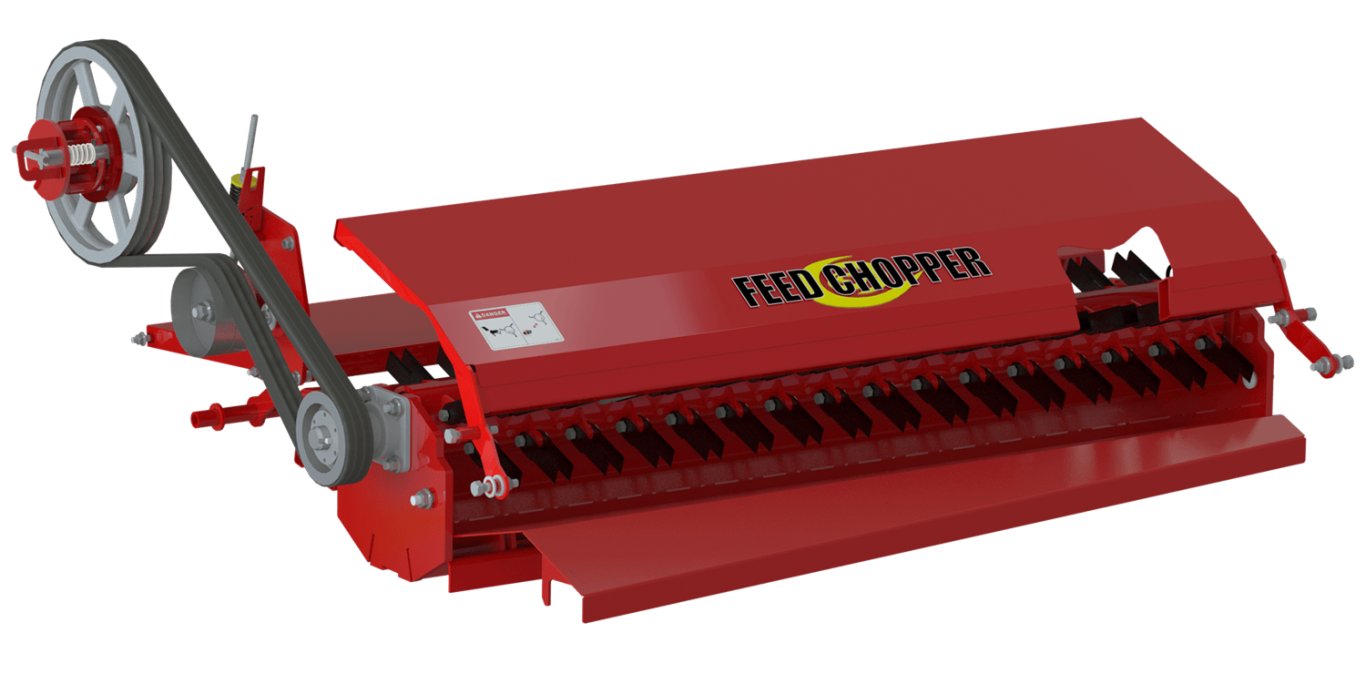

The Feed Chopper™, exclusively from Highline®, is a secondary processing option to create shorter cut lengths. Rather than stationary knives that pulverize or drag leaves off of stems, the Highline® Feed Chopper™ truly slices through the hay creating an optimal consistency. The Feed Chopper™ is a great alternative to tub grinders.
- Improves Whole Plant Intake - Chopping reduces particle size of the whole plant improving intake of the stem portion. This is the part cows and sheep sort against. The efficiency of forage utilization improves, reducing the amount of forages for winter feeding the herd.
- Reduces Waste While Increasing Palatability - Cattle have preferences in what they eat. For example, longer coarse feed and low quality hay may have adequate nutritional value, but are not eaten, creating feed waste. By chopping low quality hay, intake of feed is increased, cattle will clean up the windrow or feed bunks.
- Minimizes Sorting - Consistent shorter cut length hay from the Feed Chopper™ ensures cattle do not sort different length material or grain. Now full feed utilization can occur while the cattle are eating the intended rations.
- Flexibility of Feed Types - The Highline® Feed Chopper™ excels at cutting a wide range of bales including silage, corn or old straw bales. Feed sources can include: Corn Stover, Canola Straw, Green Feed, Alfalfa and Silage Bales, processed to an appropriate blend of cut length.
The Grain Tank is a variable speed hydraulic drive feed system that allows for even and consistent flow.
- Controlling Rations - It is vital to ensure that the amount of grain added into a ration is controlled. The amount of grain components in the ration needs to match up with the rumen’s ability to utilize the grains. Increasing the grain components too quickly can result in acidosis and the animals going off feed. The Highline® hydraulic drive feed system precisely distributes the grain or pellets into the hay or straw windrow. The hydraulic drive feed system now allows for stationary processing with precise grain addition – perfect for pre-processing for wagon or mixer feeding!
- Control System Display - Easily set your rate for any feeding scenario. Enter the output you want, the calibration value, and start feeding.
Videos
BP661specspage.pdf
