JBM Mfg 20-ton Load Master

  • JBM Mfg 20 ton Load Master
  • JBM Mfg 20 ton Load Master
  • JBM Mfg 20 ton Load Master
  • JBM Mfg 20 ton Load Master
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

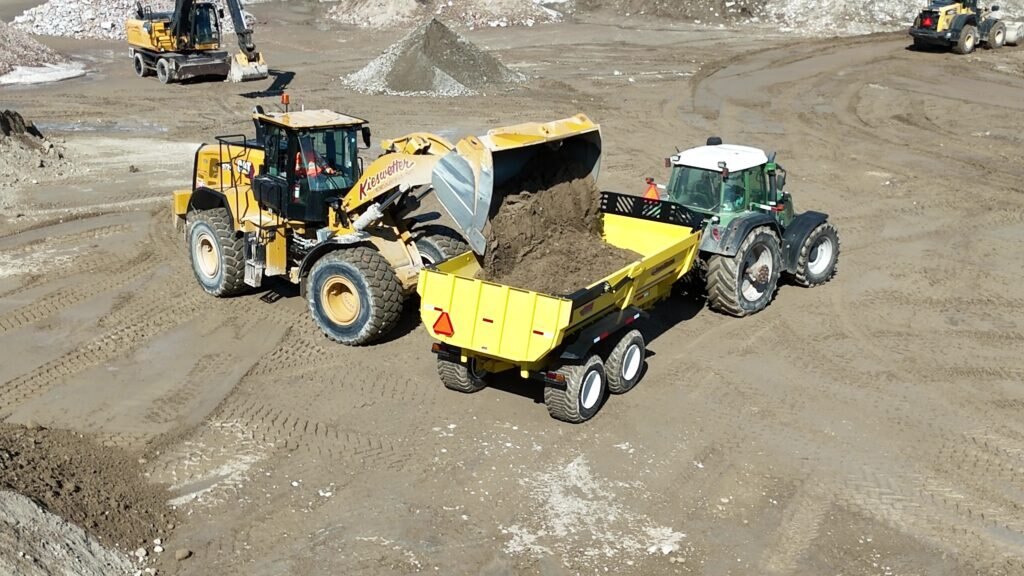

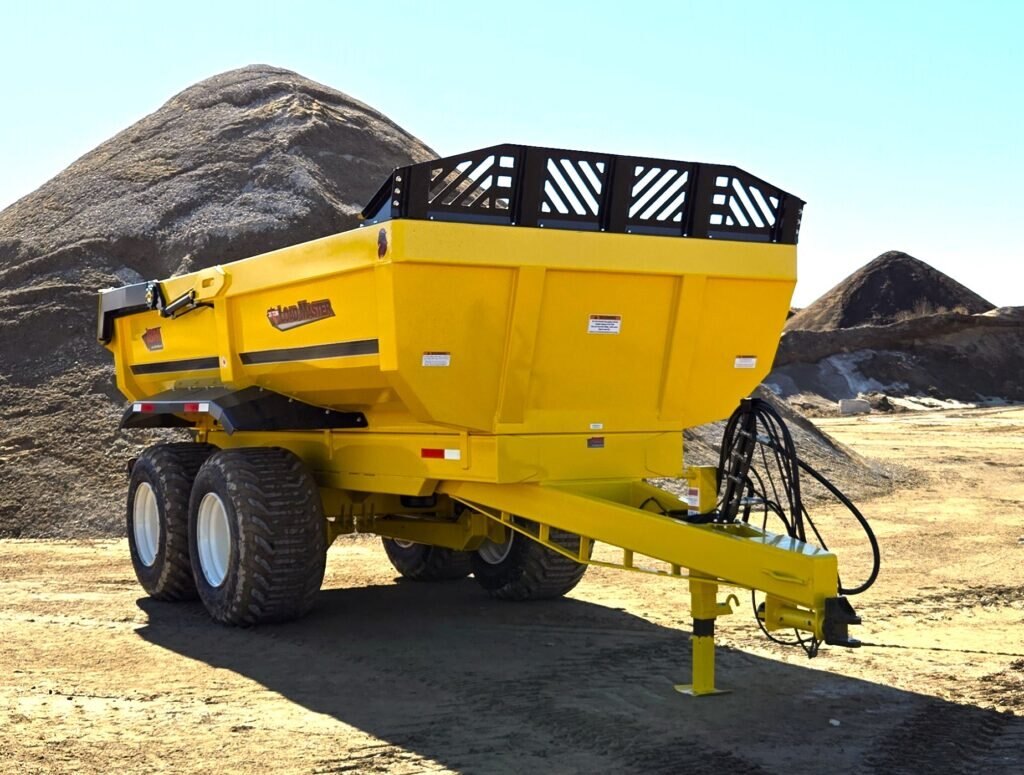

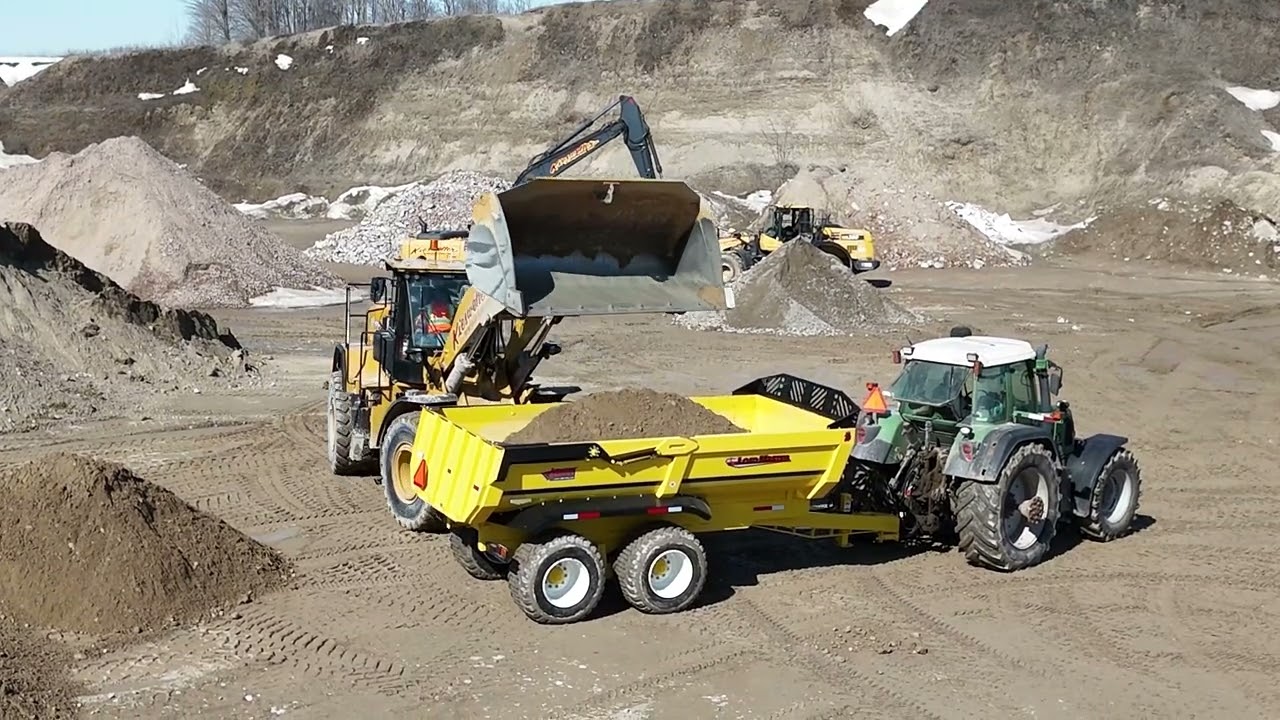

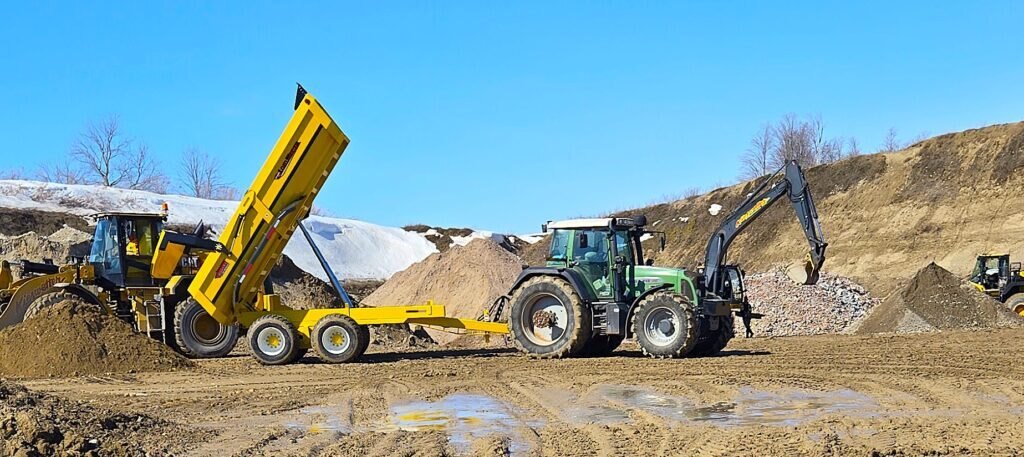

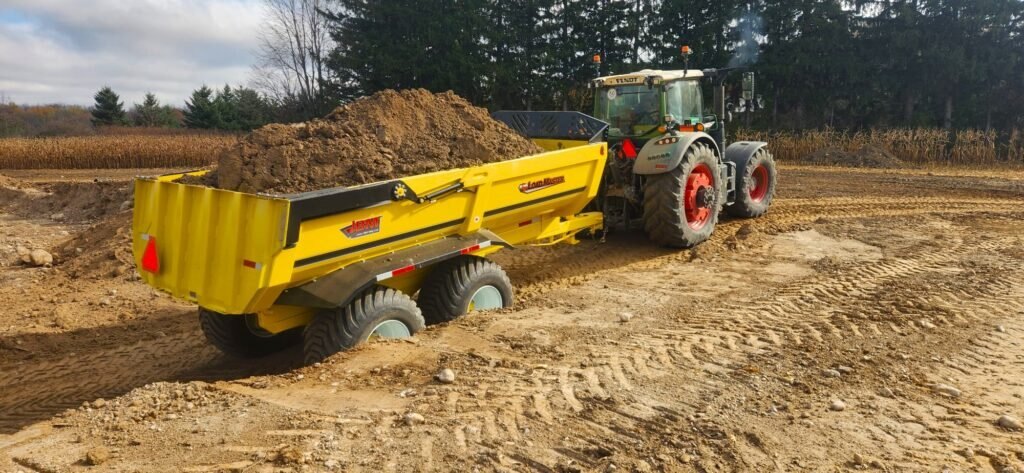

Our construction grade, 20-ton Load Master is designed to haul the heaviest loads under the most rugged conditions. Move rocks, gravel, construction materials and demolition debris with ease. The Load Master offers the functionality and durability that these jobs require. The hydraulic tailgate opens 3’ 7” above the sides for unobstructed dumping. Dump box dimensions: 8’ wide x 16’ long with 3’ high sides.

Specifications
Model
20-ton Load Master
Category Name
Livestock & Feeding
Year
2025
Sale Type
New
Manufacturer
JBM
features
  • 3/16” thick, Hardox 500 Tuf, wear resistant steel plate dump box and deck
  • Hydraulic tailgate – Hoses included
  • Heavy duty 6-Stage underbody telescopic cylinder – attached to trailer frame with a saddle, and to dump box with a swivel ball, which protects seals when dumping on uneven ground – hoses included
  • Tandem axle with 2-wheel hydraulic disc brakes – Hoses included
  • Swivel clevis hitch
  • 12,000-pound drop leg jack
  • Spindles and 10-bolt hubs rated for 16,000 pounds each
  • 600/50 x 22.5” 16-ply flotation tires on 20” x 10-bolt rims
  • Safety chains, set of 2 – 3/8” x 3’ grade 70 with snap hooks
  • LED light kit, mounted on spring loaded beams
  • Hose keeper to protect hydraulic lines when not in use
  • Removable fenders and stone guard
options

There are no options available for the 20-ton Load Master at this time.
